Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White)

Name: Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White)
Brand: Vitrax
SKU: TBD0414480301B
Price: 17.32 GBP
Availability: InStock

£17.32 GBP

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

1. Narrow bezel, small size, and equipped with level conversion circuit

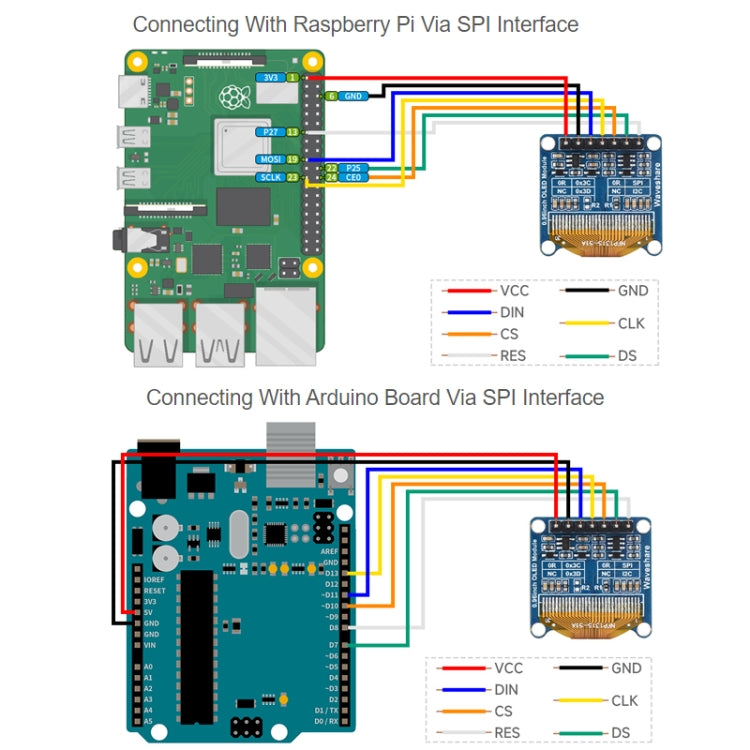

2. Four-wire SPI and I2C interface, good compatibility and fast transmission speed
3. Provide supporting information manual (Raspberry Pi/Arduino/STM32 sample program)
4. Working voltage: 3.3V / 5V
5. Resolution: 128×64 pixels
6. Pixel size: 0.15 × 0.15mm
7. Communication interface: 4-wire SPI/I2C
8. Display panel: OLED
9. Driver chip: SSD1315
10. Display size: 0.96 inches

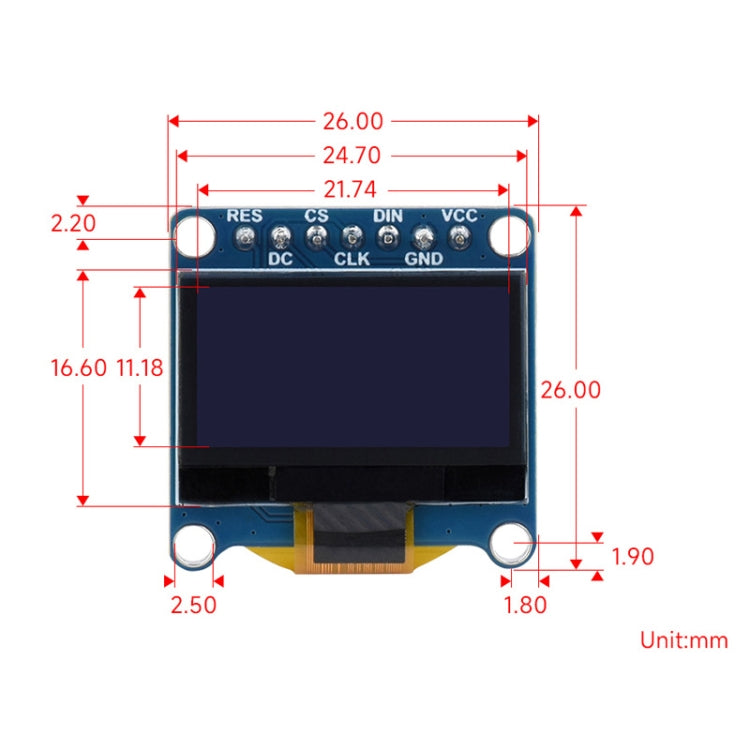

11. Size: approx. 2.6 x 2.6cm

Specification:

Package Weight

One Package Weight

0.02kgs / 0.05lb

One Package Size

8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch

Qty per Carton

500

Carton Weight

12.00kgs / 26.46lb

Carton Size

30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch
