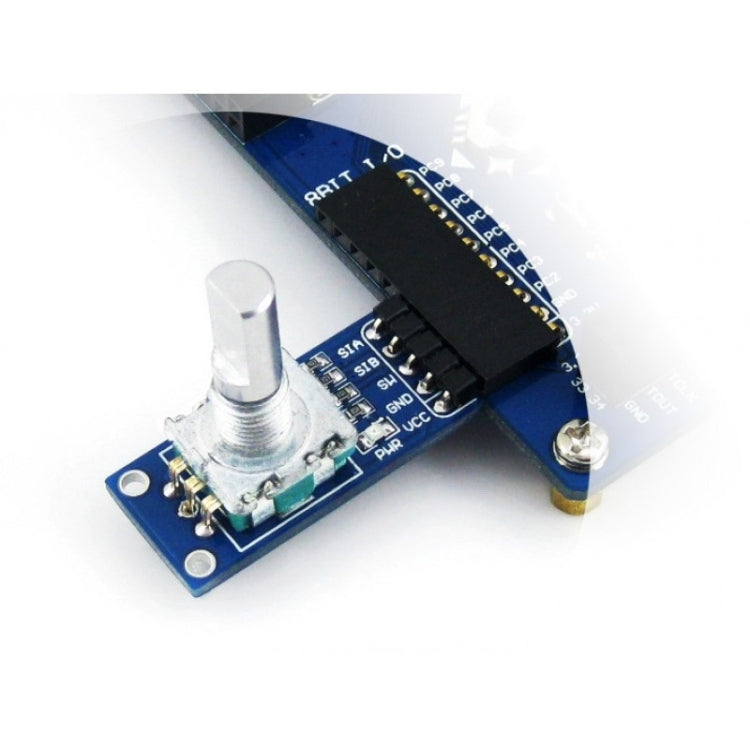

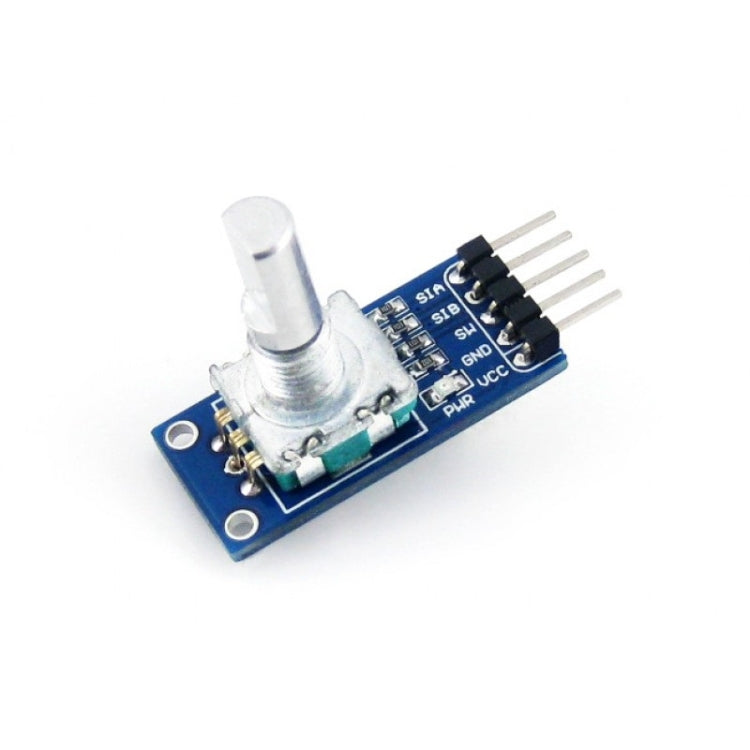

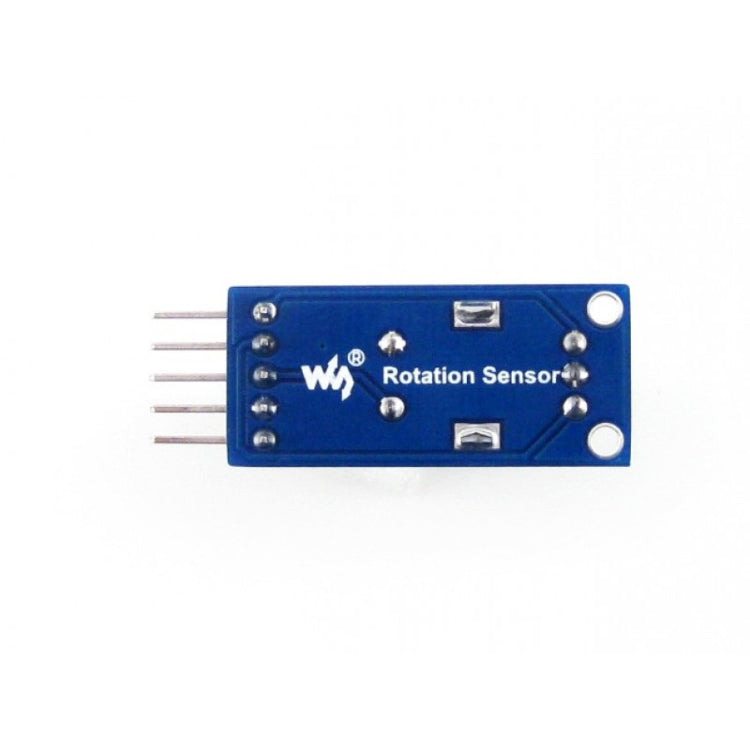

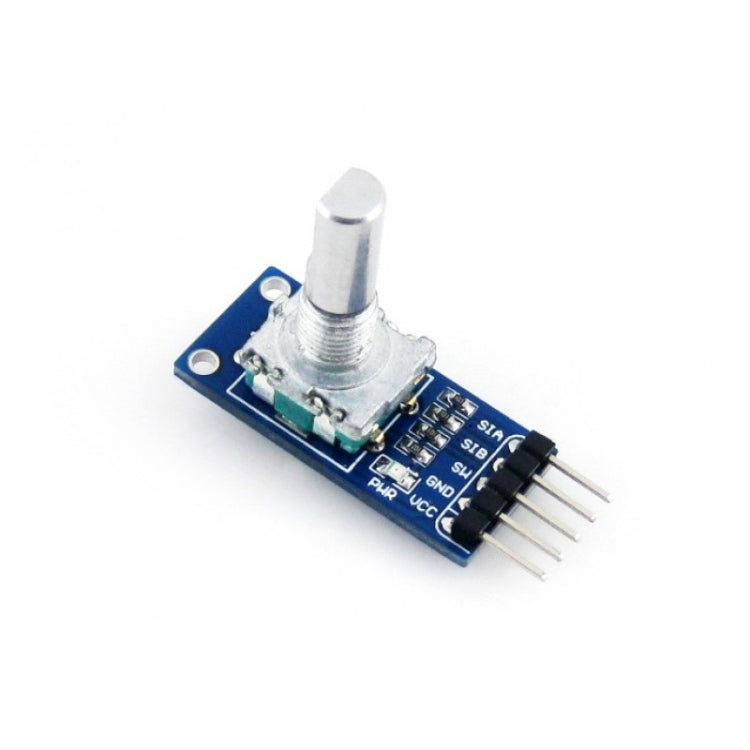

Waveshare Rotation Sensor, Rotation

£2.99 GBP

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Option Rotation

Overview
Detects clockwise/anti-clockwise rotations: degrees and laps

Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm

Applications
Positioning in Industrial Controls

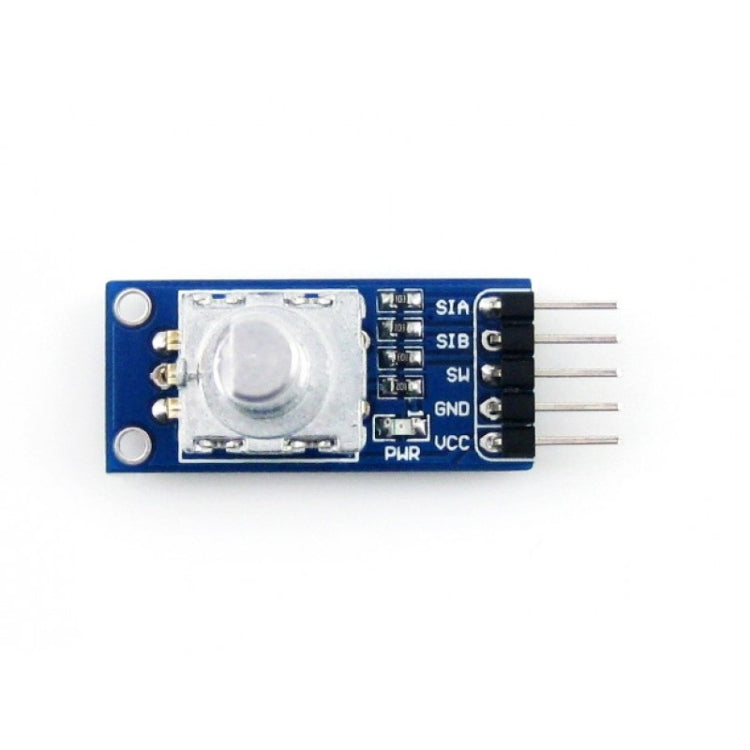

How to Use
In the case of working with a MCU:
1. VCC -- 3.0V ~ 5.3V
2. GND -- Power supply ground
3. SW -- MCU.IO (encoder button status)
4. SIB -- MCU.IO (output status)
5. SIA -- MCU.IO (output status)

Specification:

Package Weight

One Package Weight

0.02kgs / 0.04lb

One Package Size

5cm * 2cm * 1cm / 1.97inch * 0.79inch * 0.39inch

Qty per Carton

9600

Carton Weight

15.00kgs / 33.07lb

Carton Size

60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
