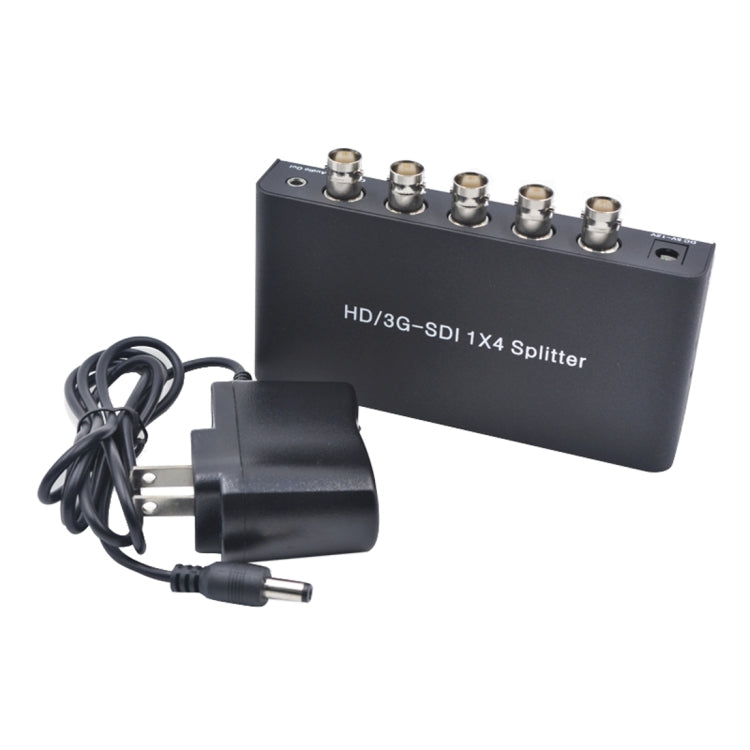

HD/3G-SDI 1X4 Splitter Video Adapter

HD/3G-SDI 1X4 Splitter Video Adapter

£33.99 GBP
£33.99 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
1. An SDI signal input method, divided into four SDI outputs.
2. Support audio signals separated into two channels simultaneously.
3. Adopt 24bit / 192KHz DAC chip to obtain high-quality sound (Splitter only supports 48Khz).
4. DC 5-12V input.
5. With indicator light to show the device usage status.
6. Input port: 1 x BNC (SD / HD / 3G-SDI).
7. Output port: 4 BNC (SD / HD / 3G-SDI), 1 3.5mm audio headphone jack.


Specification:
General
Types Splitter
SDI In/Out Resolution SD: 480i@60, 576i@50, HD: 720p@50/60, 1080i@50/60, 3G: 1080p@24/25/29.97/30/50/59.94/60
Operating Temperature -10 to 55 Degree Celsius
Storage Temperature -20 ~ 60 Degree Celsius
Operating Humidity 10 ~ 90 Percent RH (Non-condensing)
Power Consumption 1.5W
ESD Protection Human Body Model +-8kV (air-gap discharge)
+-4kV (contact discharge)
Size 12.5*6.7*2.2cm
Weight 230g
Package Weight
One Package Weight 0.31kgs / 0.68lb
One Package Size 21cm * 15cm * 5.5cm / 8.27inch * 5.91inch * 2.17inch
Qty per Carton 20
Carton Weight 5.60kgs / 12.35lb
Carton Size 44cm * 32cm * 30cm / 17.32inch * 12.6inch * 11.81inch
Loading Container 20GP: 631 cartons * 20 pcs = 12620 pcs
40HQ: 1465 cartons * 20 pcs = 29300 pcs
