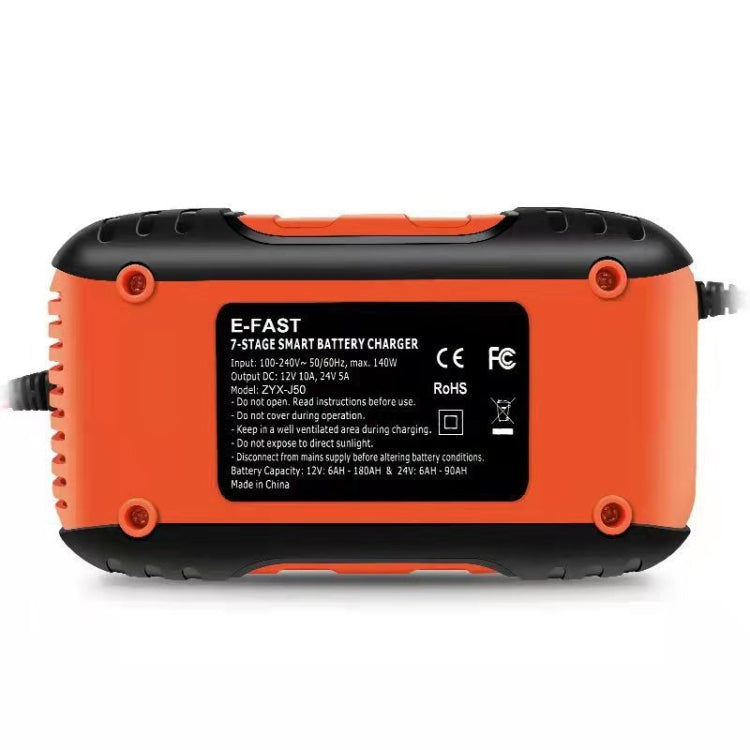

1. Microprocessor Control (CPU)
2. 7-Stage Automatic Charging: This is a fully automatic battery charger with 7 charging stages. Automatic charging prevents overcharging of the battery. Therefore, you can connect the charger to the battery indefinitely.
3. 7-Stage Chargers are suitable for most battery types including Calcium, Gel AGM, LiFePo4, Wet Cell, Lead Acid. They can also help restore depleted and sulphated batteries.
4. Switch mode technology: Yes
5. Polarity protection: Yes
6. Output short circuit protection: Yes
7. Non-battery link protection: Yes
8. Overvoltage protection: Yes
9. Over temperature protection: Yes
10. Cooling: Fan
11. Input voltage: 100-240V AC, 50-60Hz
12. Rated output: 12V 10A, 24V 5A 14.6V 29.2v LiFeP04
13. Minimum starting voltage: 8.0V
14. Battery range: 6-180Ah
15. Thermal protection: 65+/-5 degrees Celsius
16. Efficiency: Approx. 85%.
17. Compliant standards: CE, IEC60335, EN61000, EN55014
18. Dimensions (length x width x height): 23 x 13.5 x 7.5cm
19. Weight: 640g
Specification:
|
Package Weight
|
| One Package Weight |
0.67kgs / 1.49lb
|
| One Package Size |
25cm * 16cm * 10cm / 9.84inch * 6.3inch * 3.94inch
|
| Carton Weight |
20.50kgs / 45.19lb
|
| Carton Size |
52cm * 42cm * 36cm / 20.47inch * 16.54inch * 14.17inch
|
| Loading Container |
20GP: 339 cartons * 30 pcs = 10170 pcs
40HQ: 787 cartons * 30 pcs = 23610 pcs
|
|
